Main Feature：
Multiple functions:
Constant-voltage MIG welding
Pulse MIG Welding
Double-pulse MIG Welding
MMA Welding,Carbon Air Gauging
TIG Welding
Robot Welding
Perfect for Welding Aluminum
Constant-voltage MIG welding
Pulse MIG Welding
Double-pulse MIG Welding
MMA Welding,Carbon Air Gauging
TIG Welding
Robot Welding
Perfect for Welding Aluminum
Standard:
|
Model
|

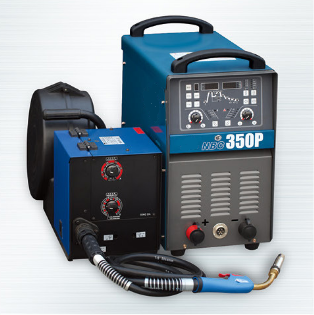

MIG-500P
|
MIG-350P
|
|
Input Voltage
|
3~380V 50/60HZ
|
3~380V 50/60HZ
|
|
Rated Input Capacity
|
25KVA
|
13.5KVA
|
|
Output Current Range
|
60~500A
|
60~350A
|
|
Duty Cycle
|
60%
|
60%
|
|
Dimension(mm)
|
636×322×584
|
576X297X574
|
|
Weigth
|
70KG
|
42KG
|
|
Wire Feeder
|
CS-501-1
|
CS-501-1
|
|
Gas Meter
|
CLT-25/AC36V
|
CLT-25/AC36V
|
|
Welding Gun
|
MB501D
|
To be optional
|
|
Cooling Way
|
Water Cooling
|
Water/Air Cooling
|
Easy operation and unitary adjustment.
Built-in data source.Automatic and intelligent parameters can be set.
Can store 100sets customerized welding parameters
Digital controller to control the waveform.
Digital wire-feed controlling system can make the aluminum wire feeding steady.
Perfect for welding aluminum plate.Start and end the arc easily.No crater defect.
No spatter and good welding performance.
Functions of avoiding over-current,over-voltage,over-heating,wire-blocking.
Different machine configuration for steel welding or aluminum welding.
Built-in data source.Automatic and intelligent parameters can be set.
Can store 100sets customerized welding parameters
Digital controller to control the waveform.
Digital wire-feed controlling system can make the aluminum wire feeding steady.
Perfect for welding aluminum plate.Start and end the arc easily.No crater defect.
No spatter and good welding performance.
Functions of avoiding over-current,over-voltage,over-heating,wire-blocking.
Different machine configuration for steel welding or aluminum welding.
