Anchor chain
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Anchor chain

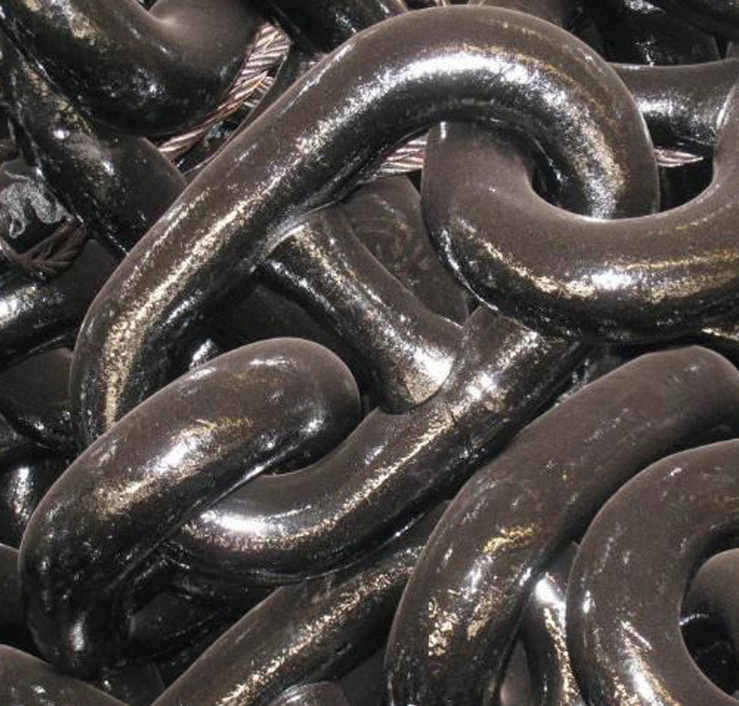

Stud Link Steel Chain

Product Details:

Material: Special Quality Steel, Extra Special Quality Steel

Surface: Black Painted or Galvanised

Standard: Lastest version of ISO1704, GB/T 549, JIS F3303, GOST 228, IACS, OCIMF and API

Grade: U1, U2, U3

Diameter: 12.5mm to 162mm

Length : 27.5m

Certification : ISO9001, LR, ABS, DNV, GL, BV, NK, KR, CCS, RINA, CCS, RMRS.

Stud Link Anchor Chain Specification ：

Diameter		Chain Link Size		AM 1		AM 2		AM 3		Approx
		Outside	Outside	U1 Stud Link Chain		U2 Stud Link Chain		U3 Stud Link Chain		Weight
		Length	Width	Proof	Breaking	Proof	Breaking	Proof	Breaking	27.5 m
Inch	mm	mm	KN	KN	KN	KN	KN	KN	KN	27.5 m
1/2	12.5	75	45	46	66	66	92	92	132	98
9/16	14	84	50.4	58	82	82	116	116	165	119
5/8	16	96	57.6	76	107	107	150	150	216	156
11/16	17.5	105	63	89	127	127	179	179	256	186
3/4	19	114	68.4	105	150	150	211	211	301	230
13/16	20.5	123	73.8	123	175	175	244	244	349	260
7/8	22	132	79.2	140	200	200	280	280	401	300
15/16	24	144	86.4	167	237	237	332	332	476	370
1-1/16	26	156	93.6	194	278	278	389	389	556	431
1-1/8	28	168	100.8	225	321	321	449	449	642	496
1-3/16	30	180	108	257	368	368	514	514	735	564
1-1/4	32	192	115.2	291	417	417	583	583	833	635
1-5/16	34	204	122.4	328	468	468	655	655	937	712
1-7/16	36	216	129.6	366	523	523	732	732	1050	800
1-1/2	38	228	136.8	406	581	581	812	812	1160	887
1-9/16	40	240	144	448	640	640	896	896	1280	1032
1-5/8	42	252	151.2	492	703	703	981	981	1400	1084
1-3/4	44	264	158.4	538	769	769	1080	1080	1540	1197
1-13/16	46	276	165.6	585	837	837	1170	1170	1680	1310
1-7/8	48	288	172.8	635	908	908	1270	1270	1810	1438
2	50	300	180	686	981	981	1370	1370	1960	1546
2-1/16	52	312	187.2	739	1060	1060	1480	1480	2110	1661
2-1/8	54	324	194.4	794	1140	1140	1590	1590	2270	1791
2-3/16	56	336	201.6	851	1220	1220	1710	1710	2430	1926
2-5/16	58	348	208.8	909	1290	1290	1810	1810	2600	2086
2-3/8	60	360	216	969	1380	1380	1940	1940	2770	2249
2-7/16	62	372	223.2	1030	1470	1470	2060	2060	2940	2361
2-1/2	64	384	230.4	1100	1560	1560	2190	2190	3130	2516
2-9/16	66	396	237.6	1160	1650	1660	2310	2310	3300	2676
2-11/16	68	408	244.8	1230	1750	1750	2450	2450	3500	2885
2-3/4	70	420	252	1290	1840	1840	2580	2580	3690	3010
