Anchor chain
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Anchor chain

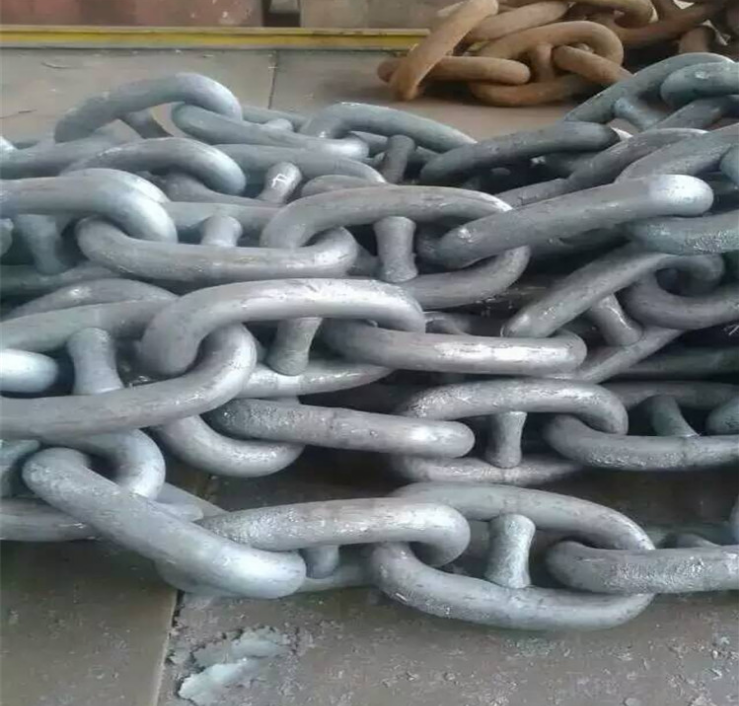

Grade 3 Stud Link Anchor Chain

Product Details:

Material: Special Quality Steel, Extra Special Quality Steel

Surface: Black Painted or Galvanised

Standard: Lastest version of ISO1704, GB/T 549, JIS F3303, GOST 228, IACS, OCIMF and API

Grade: U1, U2, U3

Diameter: 12.5mm to 162mm

Length : 27.5m

Certification : ISO9001, LR, ABS, DNV, GL, BV, NK, KR, CCS, RINA, CCS, RMRS.

Diameter	AM 1		AM 2		AM 3		Approx
	U1 Stud Link Chain		U2 Stud Link Chain		U3 Stud Link Chain		Weight
	Breaking	Proof	Breaking	Proof	Breaking	Proof	Weight
mm	KN	KN	KN	KN	KN	KN	KG
12.5	66	46	92	66	132	92	98
14	82	58	116	82	165	116	119
16	107	76	150	107	216	150	156
17.5	127	89	179	127	256	179	186
19	150	105	211	150	301	211	230
20.5	175	123	244	175	349	244	260
22	200	140	280	200	401	280	300
24	237	167	332	237	476	332	370
26	278	194	389	278	556	389	431
28	321	225	449	321	642	449	496
30	368	257	514	368	735	514	564
32	417	291	583	417	833	583	635
34	468	328	655	468	937	655	712
36	523	366	732	523	1050	732	800
38	581	406	812	581	1160	812	887
40	640	448	896	640	1280	896	1032
42	703	492	981	703	1400	981	1084
44	769	538	1080	769	1540	1080	1197
46	837	585	1170	837	1680	1170	1310
48	908	635	1270	908	1810	1270	1438
50	981	686	1370	981	1960	1370	1546
52	1060	739	1480	1060	2110	1480	1661
54	1140	794	1590	1140	2270	1590	1791
56	1220	851	1710	1220	2430	1710	1926
58	1290	909	1810	1290	2600	1810	2086
60	1380	969	1940	1380	2770	1940	2249
62	1470	1030	2060	1470	2940	2060	2361
64	1560	1100	2190	1560	3130	2190	2516
66	1650	1160	2310	1660	3300	2310	2676
68	1750	1230	2450	1750	3500	2450	2885
70	1840	1290	2580	1840	3690	2580	3010
73	1990	1390	2790	1990	3990	2790	116.71
76	2150	1500	3010	2150	4300	3010	126.5
78	2260	1580	3160	2260	4500	3160	133.2
81	2410	1690	3380	2410	4820	3380	143.69
84	2580	1800	3610	2580	5160	3610	154.53
87	2750	1920	3850	2750	5500	3850	165.76
90	2920	2050	4090	2920	5840	4090	177.39
92	3040	2130	4260	3040	6080	4260	185.36
95	3230	2260	4510	3230	6440	4510	197.56
97	3340	2340	4680	3340	6690	4680	206.06
100	3530	2470	4940	3530	7060	4940	219
102	3660	2560	5120	3660	7320	5120	227.85
105	3850	2700	5390	3850	7700	5390	241.45
107	3980	2790	5570	3980	7960	5570	250.73
111	4250	2970	5940	4250	8480	5940	269.83
114	4440	3110	6230	4440	8890	6230	284.61
117	4650	3260	6510	4650	9300	6510	299.79
120	4850	3400	6810	4850	9720	6810	315.86
122	5000	3500	7000	5000	9990	7000	325.96
124	5140	3600	7200	5140	10280	7200	336.73
127	5350	3750	7490	5350	10710	7490	353.23
130	5570	3900	7800	5570	11140	7800	370.11
132	5720	4000	8000	5720	11420	8000	381.59
137	6080	4260	8510	6080	12160	8510	411.04
142	6450	4520	9030	6450	12910	9030	441.59
147	6840	4790	9560	6840	13660	9560	473.59
152	7220	5050	10100	7220	14430	10100	505.98
157	7600	5320	10640	7600	15200	10640	539.81
162	7990	5590	11180	7990	15980	11180	574.74
