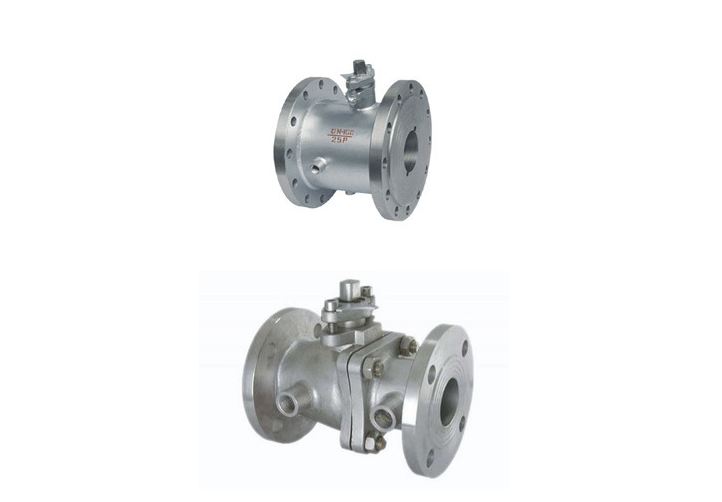

Jacket Ball Valve

Jacket Ball Valve (1).png

    Heating jacket ball valve is a kind of heating jacket ball valve, use to keep media cold preservation or heat preservation, has high performance insulation structure, mainly use for heating high temperature and keep the medium stay liquid. Design feature such as compact wafer type structure, short distance between the valve seat and the end flange, low medium retention, large volume heat preservation, superior sealing performance and long service life etc.
Heating jacket ball valve usually used for the medium that easily solidified thus can not flow at normal atmospheric temperature, such as chocolate, grease, benzene, sulfur，molten sulphur, asphalt, bitumen, wax, polyurethane, resin, fatty alcohol etc.

VALVE DESIGN DATA

Size: 1/2"-8"
End connection: RF, BW
Working temperature: -29℃～200℃
Operation: handwheel, gear box, electric, etc

Nominal pres sure:  Class 150Lb-600Lb PN1.6-4.0MPa
Material:  WCB,LCB,CF8,CF8M,CF3,CF3M,A105,LF2,F304,F316,F304L,F316L
Design & Manufacture Std.:  API 608 、API 6D、GB/T1237
Face to Face Std.: ANSI B16.34 、API 608 、API 6D
Welded End Connection Std.: ASME B16.34
API 608 is intended to provide the similar additional requirements for steel and alloy steel ball valves beyond
ASME B16.34 as do the following API standards for other valve types:
API  594, Check Valves: Flanged, Lug, Wafer and Butt-welding
API Standard 599, Metal Plug Valves—Flanged, Threaded and Welding Ends
API Standard 600, Bolted Bonnet Steel Gate Valves for Petroleum and Natural Gas Industries
API Standard 602, Steel Gate, Globe and Check Valves for Sizes DN 100 and Smaller for the Petroleum and Natural Gas Industries
API Standard 603, Corrosion-resistant, Bolted Bonnet Gate Valves Flanged and Butt-welding Ends
API 609, Butterfly Valves: Double Flanged, Lug and Wafer-type
ASME B1.20.1, Pipe Threads, General Purpose (Inch)
ASME B16.5, Pipe Flanges and Flanged Fittings NPS
ASME B16.10, Face-to-Face and End-to-End Dimensions
ASME B16.11, Forged Fittings, Socket-welding and Threaded
ASME B16.20, Metallic Gaskets for Pipe Flanges—Ring-joint, Spiral-wound and Jacketed
ASME B16.25, Butt Welding Ends
ASME B31.3  Process Piping
API 6FA  Fire Testing of Valves
API Std 598  Valve Inspection and Testing

Would you like to get more products information or order it, please call me
