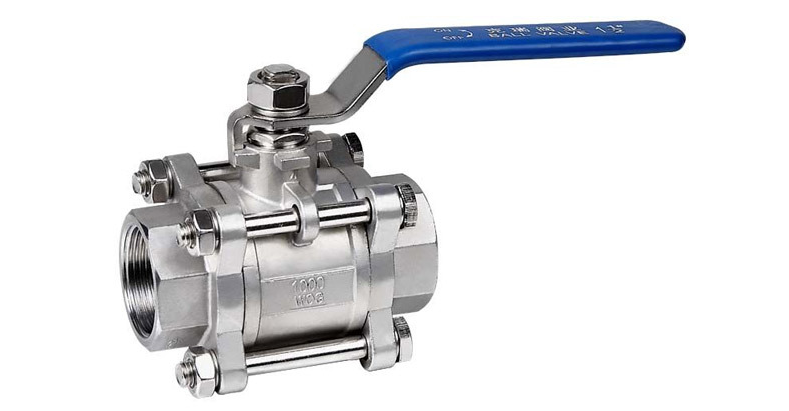

JERI 1PC/2PC/3PC ball valve available for manual operation or with ISO direct mounting platform apply to pneumatic or electric control, was mainly used to cut off or adjust the direction of the medium in pipeline, the end connections have thread, butt weld, socket weld, clamped, flanged etc. Valve structure is easy operation and maintenance, horizontal and vertical pipelines both can be installed, convenient for pneumatic control and electrical control.
Applicable to water, solvents, acid, natural gas, oxygen and other condition, usually use in some chemical process piping, bio-pharmaceuticals, shipbuilding, coating, oils & fats, brewing, water treatment, HVAC and other fields.

VALVE DESIGN DATA

Size: 1/2"-4"
End connection: Thread
Working temperature: -29℃～200℃
Operation: Handle, signal, pneumatic, electric actuator
Nominal pres sure:  Class 150Lb-600Lb PN1.6-4.0MPa
Material:  WCB,LCB,CF8,CF8M,CF3,CF3M,A105,LF2,F304,F316,F304L,F316L
Design & Manufacture Std.:  GB/T 12237, ASME B16.34, JIS B2071, DIN 3357
Face to Face Std.: ANSI B16.34 、API 608 、API 6D
Thread End Connection Std.:ANSI B1.20.1
API 608 is intended to provide the similar additional requirements for steel and alloy steel ball valves beyond
ASME B16.34 as do the following API standards for other valve types:
API  594, Check Valves: Flanged, Lug, Wafer and Butt-welding
API Standard 599, Metal Plug Valves—Flanged, Threaded and Welding Ends
API Standard 600, Bolted Bonnet Steel Gate Valves for Petroleum and Natural Gas Industries
API Standard 602, Steel Gate, Globe and Check Valves for Sizes DN 100 and Smaller for the Petroleum and Natural Gas Industries
API 609, Butterfly Valves: Double Flanged, Lug and Wafer-type
ASME B1.20.1, Pipe Threads, General Purpose (Inch)
ASME B16.5, Pipe Flanges and Flanged Fittings NPS
ASME B16.10, Face-to-Face and End-to-End Dimensions
ASME B16.11, Forged Fittings, Socket-welding and Threaded
ASME B16.20, Metallic Gaskets for Pipe Flanges—Ring-joint, Spiral-wound and Jacketed
ASME B16.25, Butt Welding Ends
ASME B31.3  Process Piping
API 6FA  Fire Testing of Valves
API Std 598  Valve Inspection and Testing
