Anchor chain swivel is a special rotary ring to prevent the twisting of anchor chains. It connects with Grade 2 or Grade 3 anchor chains. Swivel is made from steel and its surface is hot dip galvanized. Swivel has different sizes to meet customer`s request.

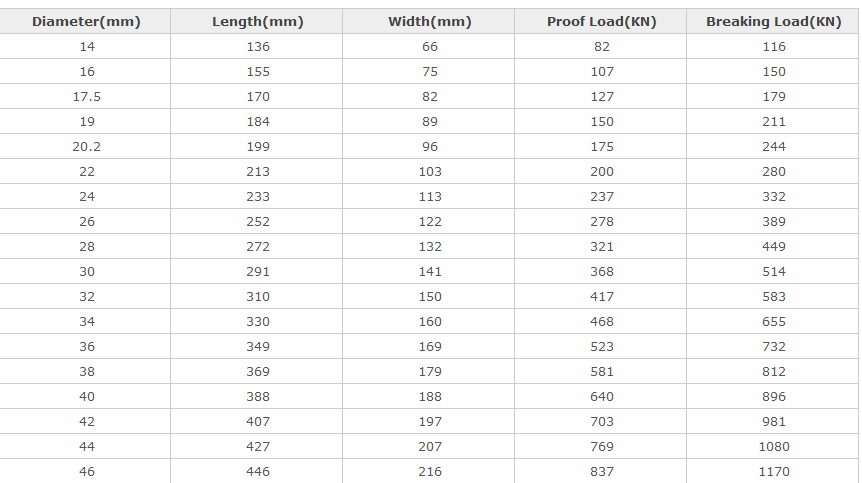

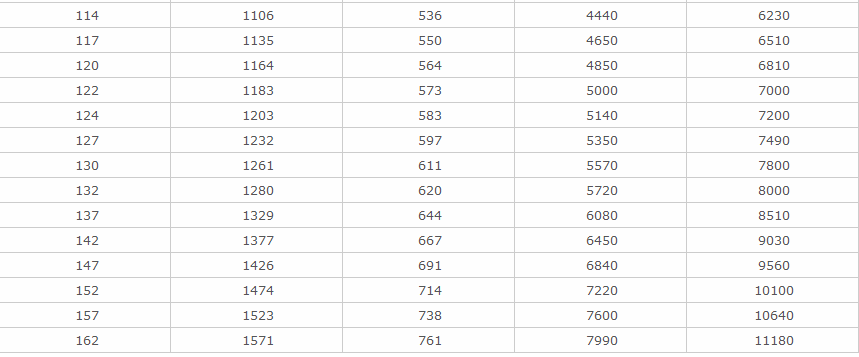

Specification :
1, Diameter : 14mm to 162mm
2, Proof Load : 82KN to 11180KN
3, Breaking Load : 116KN to 15980 KN
4, Material : Steel
5, Surface Treatment: Hot Dip Galvanized and Eletro-galvanized
6, Color : as customer`s request
