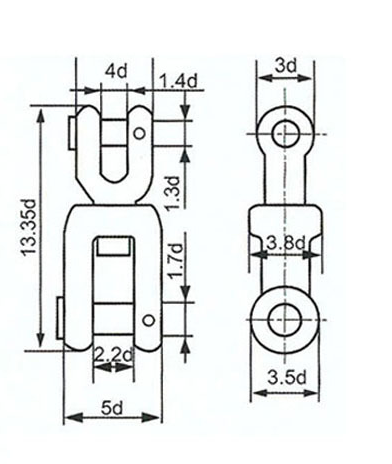

Anchor swivel shackle is a joining link which is used to connect the anchor and chain cable, which has both the functions of swivel and shackle. It has two types: type A and type B, made of forged steel or cast steel.
Type A swivel shackle can join directly the anchor shank. It is not suitable for the connection with anchor shackle.
Type B swivel shackle can be directly connected with the anchor shackle and also accessible to be connected with anchor shank.
Specification:
1, Material : Forged steel, Cast Steel
2,Grade: Grade2 or Grade3
3,Diameter: 22mm to 117mm
4, Surface treatment: Black Painted, Hot Dip Galvanized
