Marine bollard
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine bollard

ISO13795 Type A Bollard

ISO13795 Type A Bollard (2).jpg

Bollard Capacity : 150 to 600 Tonnes

Material : Cast Steel , Cast Iron

Surface : black bitumen paint

Packing : refer to client`s request

Delivery Time : 30 days after payment

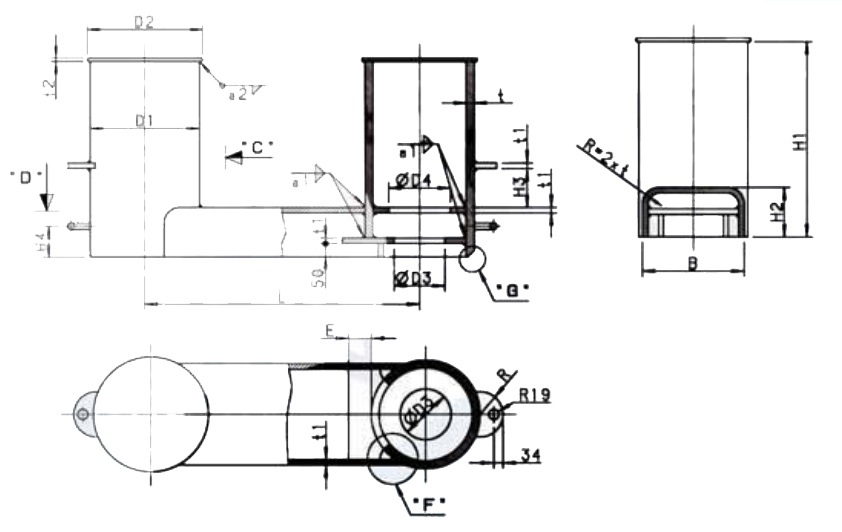

ISO13795 Type A Bollard (1).png

MODELNO	SIZE(mm)									SWL (T)	Weight (Kg)
MODELNO	D1	D2	D3	D4	H1	H2	B	L	E	SWL (T)	Weight (Kg)
150	165.2	185	－	80	330	90	155	400	－	5T	29
200	216.3	240	－	130	395	115	205	500	－	6.7T	46
250A	267.4	290	－	160	505	135	250	630	－	14T	107
250B	267.4	290	－	160	505	135	250	630	－	11T	91
300A	318.5	340	150	185	600	150	290	800	300	31T	281
300B	318.5	340	150	185	600	150	290	800	300	16T	166
350A	355.6	380	170	200	685	175	340	890	350	43T	431
350B	355.6	380	170	220	685	175	340	890	350	22T	241
400A	406.4	430	190	230	730	185	380	1000	380	53T	570
400B	406.4	430	190	250	730	185	380	1000	380	27T	322
450A	457.2	480	210	265	770	195	425	1100	410	62T	712
450B	457.2	480	210	285	770	195	425	1100	410	30T	379
500A	508	530	235	295	830	230	480	1250	460	77T	960
500B	508	530	235	320	830	230	480	1250	460	33T	465
550A	558.8	580	255	330	900	270	520	1380	540	83T	1123
550B	558.8	580	255	350	900	270	520	1380	540	55T	787
600	609.4	630	280	365	950	300	560	1550	600	97T	1391

Previous：JIS F 2001- 1990 Bollards

Next：GB 554-83 Marine Double Bollard
