Marine bollard
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine bollard

JIS Type Single – Bite Bollard

JIS Type Single – Bite Bollard (1).jpg

Bollard Capacity : 15 to 200 Tonnes

Material : Cast Steel , Cast Iron

Surface : black bitumen paint

Standard : JIS

Packing : refer to client`s request

Delivery Time : 30 days after payment

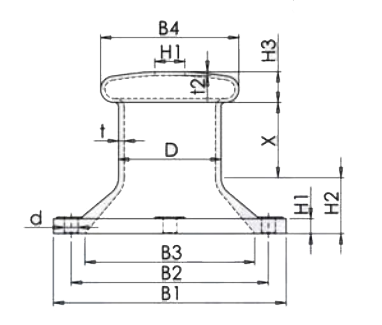

JIS Type Single – Bite Bollard (2).png

MODELNO	SIZE(mm)												Weight (Kg)
MODELNO	D	X	t	B4	H3	t2	H1	H2	B3	B1	B2	d	Weight (Kg)
15T	250	290	20	400	87	15	45	100	430	600	500	43	130
25T	300	290	20	480	105	15	60	130	510	725	600	55	220
35T	300	290	25	480	105	16	60	130	510	725	600	55	230
50T	350	330	27	550	122	18	70	160	600	810	700	66	350
70T	400	380	30	610	140	23	80	190	680	900	800	74	530
100T	450	410	35	720	157	25	80	270	860	1180	1000	74	893
150T	530	510	40	880	192	29	100	340	1010	1440	1220	91	1450
200T	750	550	43	1030	227	30	110	410	1240	1700	1440	101	2230
