Marine bollard
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine bollard

Tee Head Mooring Bollard

Tee Head Mooring Bollard (3).jpg

Bollard Capacity : 15 to 200 Tonnes

Material : Cast Steel , Cast Iron

Surface : black bitumen paint

Packing : refer to client`s request

Delivery Time : 30 days after payment

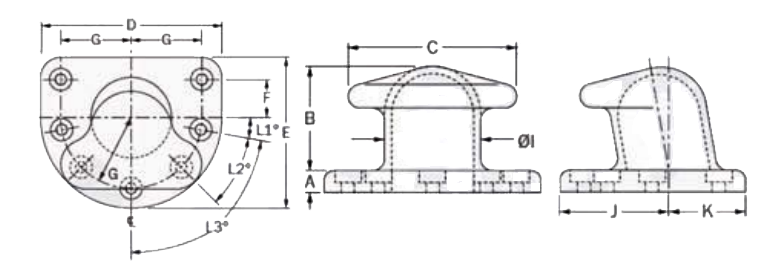

Tee Head Mooring Bollard (2).png

MODELNO	SIZE(mm)													Bolt Size	Bolt Length	P*	Qty
MODELNO	A	B	C	D	E	F	G	ΦI	J	K	L1°	L2°	L3°	Bolt Size	Bolt Length	P*	Qty
15T	40	235	340	410	335	80	155	160	205	130	30	/	60	M24	500	55	5
30T	40	255	350	450	375	100	175	200	225	150	30	/	60	M30	500	55	5
50T	50	350	500	640	540	150	250	260	320	220	30	/	60	M36	500	65	5
80T	70	380	550	640	550	160	250	280	320	230	15	45	80	M42	800	85	6
100T	80	410	600	790	640	175	325	350	395	245	10	40	80	M42	800	95	7
150T	90	435	700	900	750	200	350	400	450	300	10	40	80	M48	1000	105	7
200T	90	500	800	1000	850	225	375	450	500	350	0	36	72	M56	1000	105	8

Previous：T – Head Bollard

Next：JIS Type Single – Bite Bollard
