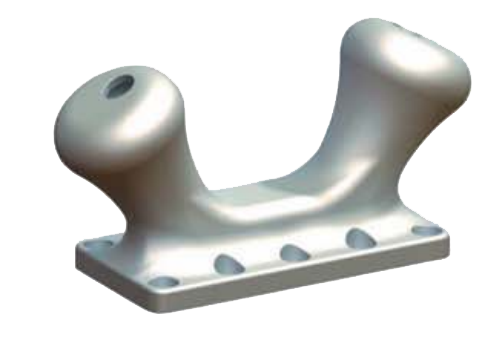

Bollard Capacity : 20 to 200 Tonnes
Material : Cast Steel , Cast Iron
Surface : black bitumen paint
Packing : refer to client`s request
Delivery Time : 30 days after payment
|

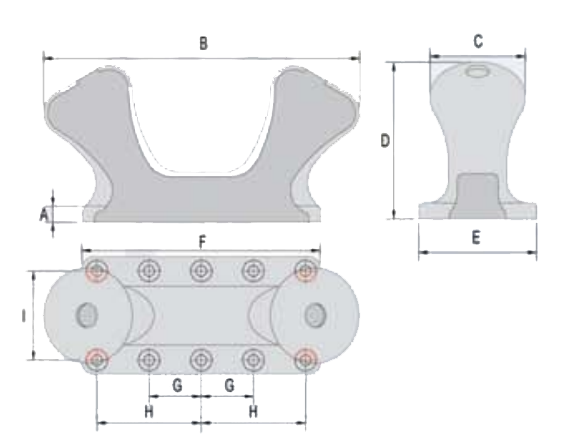

MODELNO
|
SIZE(mm)
|
Bolt
Size |
Bolt
Length |
||||||||
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
|||
|
20T
|
38
|
673
|
204
|
335
|
267
|
533
|
70
|
222
|
191
|
M20
|
300
|
|
30T
|
46
|
781
|
236
|
389
|
302
|
604
|
81
|
258
|
221
|
M22
|
300
|
|
50T
|
56
|
942
|
285
|
469
|
356
|
711
|
98
|
311
|
267
|
M30
|
450
|
|
75T
|
62
|
1144
|
346
|
570
|
432
|
864
|
189
|
378
|
324
|
M36
|
450
|
|
100T
|
73
|
1346
|
407
|
670
|
508
|
1016
|
222
|
444
|
381
|
M42
|
600
|
|
125T
|
80
|
1548
|
468
|
771
|
584
|
1168
|
256
|
512
|
438
|
M42
|
600
|
|
150T
|
91
|
1683
|
509
|
838
|
635
|
1270
|
278
|
556
|
476
|
M48
|
750
|
|
200T
|
98
|
1885
|
570
|
938
|
702
|
1422
|
311
|
622
|
533
|
M56
|
915
|
