Marine bollard
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine bollard

Type A Curved Bollard

Type A Curved Bollard (3).jpg

Bollard Capacity : 5 to 100 Tonnes

Material : Cast Steel , Cast Iron

Surface : black bitumen paint

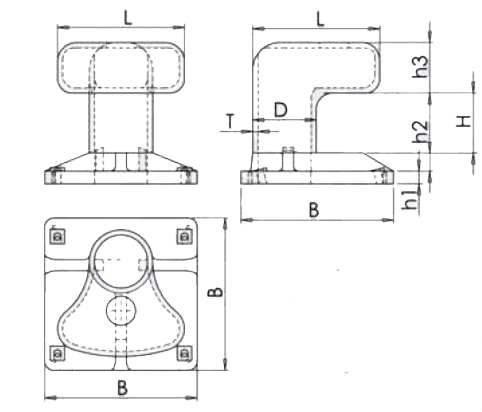

Type A Curved Bollard (1).png

MODELNO	Bolts Qty	SIZE(mm)
MODELNO	Bolts Qty	D	H	T	L	B	h1	h2	h3
5T	4	150	170	20	300	350	30	60	120
10T	4	200	210	20	400	480	40	70	160
15T	4	250	250	20	500	600	50	80	200
25T	4	300	290	21	600	720	65	95	240
35T	4	300	290	25	600	810	65	95	240
50T	4	350	330	29	700	945	70	100	280
75T	4	400	370	33	800	1130	90	120	320
100T	4	450	410	39	900	1365	95	125	360

Previous：Type B Curved Bollard

Next：Welded Bollard
