Marine anchor
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine anchor

Beldt Stockless Anchor

Beldt Stockless Anchor (4).jpg

Details:

1, Material : Steel

2, Weight : 160-50000kgs

3, Finish : black coating

4, Certificate : CCS, LR, ABS,GL,NK, RS, DNV,BV,KR

Beldt Stockless Anchor (1).png

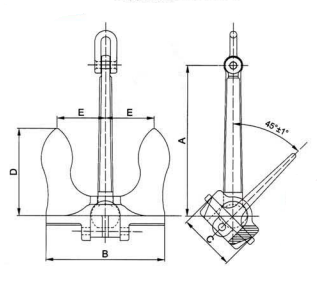

Nominal Weight (Kg)	SIZE(mm)					Nominal Weight (Kg)	SIZE(mm)
Nominal Weight (Kg)	A	B	C	D	E	Nominal Weight (Kg)	A	B	C	D	E
160	634	404	219	336	175	10000	2438	1918	990	1470	725
200	685	457	241	366	191	11000	2438	1950	1016	1473	778
300	812	590	296	442	230	12000	2438	1950	1016	1473	778
400	812	590	296	442	230	13000	2489	1949	1016	1473	799
750	965	770	407	584	308	14000	2616	2045	1118	1524	818
1000	1067	854	457	640	348	15000	2616	2184	1168	1600	875
1500	1232	1005	515	748	392	16000	2738	2184	1168	1651	875
2000	1370	1092	558	848	430	17200	2738	2184	1222	1660	875
2500	1473	1136	568	848	448	18000	2850	2240	1232	1667	888
3000	1625	1194	648	912	483	20000	2840	2440	1270	1866	990
4000	1734	1354	705	1054	518	25000	3048	2616	1365	1968	990
5000	1930	1460	762	1130	588	30000	3251	2794	1454	2096	1052
6000	1930	1613	844	1194	642	35000	3429	2946	1524	2210	1107
7000	2082	1691	882	1263	668	40000	3556	3073	1600	2311	1157
8000	2265	1691	894	1276	668	45000	3733	3200	1651	2388	1203
9000	2438	1784	924	1314	695	50000	3860	3327	1727	2515	1246

Previous：返回列表

Next：U.S.N S Stockless Anchor
