Details:
1, Material : Carbon Steel
2, Weight : 210-20000kgs
3, Finish : black coating, galvanized
4, Certificate : CCS, LR, ABS,GL,NK, RS, DNV,BV,KR
|

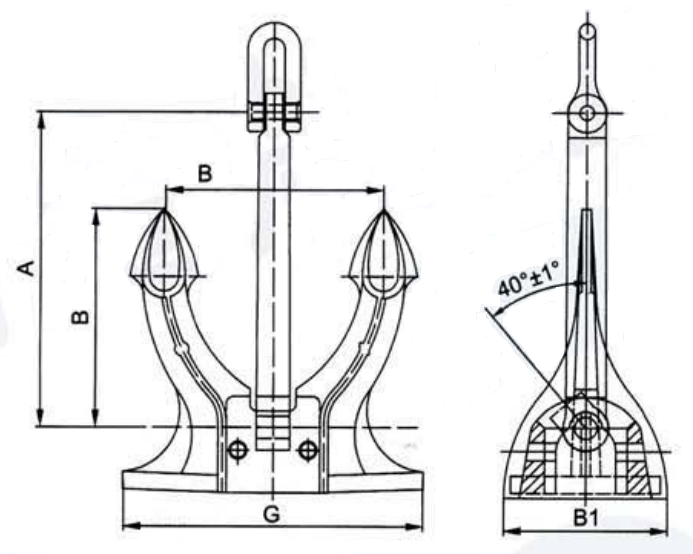

Nominal Weight |
SIZE(mm) |
Nominal Weight |
SIZE(mm) | ||||||
| A | B | B1 | G | A | B | B1 | G | ||
| 210 | 900 | 500 | 340 | 690 | 3300 | 2160 | 1200 | 834 | 1650 |
| 240 | 900 | 550 | 390 | 760 | 3780 | 2430 | 1350 | 880 | 1850 |
| 300 | 1080 | 600 | 412 | 828 | 4320 | 2520 | 1400 | 917 | 1926 |
| 450 | 1080 | 600 | 412 | 828 | 4890 | 2520 | 1400 | 954 | 1926 |
| 570 | 1170 | 650 | 442 | 900 | 5610 | 2610 | 1450 | 981 | 2000 |
| 660 | 1260 | 700 | 472 | 962 | 6000 | 2700 | 1500 | 1006 | 2060 |
| 750 | 1350 | 750 | 508 | 1032 | 6900 | 2790 | 1550 | 1034 | 2138 |
| 900 | 1440 | 800 | 547 | 1100 | 7800 | 2790 | 1550 | 1091 | 2138 |
| 1020 | 1530 | 850 | 573 | 1170 | 8300 | 3060 | 1700 | 1125 | 2332 |
| 1100 | 1620 | 900 | 620 | 1240 | 9300 | 3060 | 1700 | 1188 | 2332 |
| 1300 | 1710 | 950 | 640 | 1300 | 10500 | 3186 | 1770 | 1197 | 2440 |
| 1500 | 1710 | 950 | 671 | 1300 | 11700 | 3186 | 1770 | 1237 | 2440 |
| 1800 | 1890 | 1050 | 704 | 1454 | 12900 | 3438 | 1910 | 1260 | 2632 |
| 2100 | 1890 | 1050 | 736 | 1454 | 14700 | 3690 | 2050 | 1369 | 2824 |
| 2280 | 1980 | 1100 | 764 | 1454 | 16900 | 3816 | 2120 | 1415 | 2922 |
| 2640 | 2070 | 1150 | 804 | 1584 | 18800 | 3942 | 2190 | 1461 | 3018 |
| 2850 | 2160 | 1200 | 812 | 1650 | 20000 | 3942 | 2190 | 1493 | 3018 |
