Marine anchor
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine anchor

GB57-77 Matrosov HHP Anchor

GB57 77 Matrosov HHP Anchor (4).jpg

Details:

1, Material : Carbon Steel, Steel

2, Weight : 300-30000kgs

3, Finish : galvanized, black coating

4, Certificate : CCS, LR, ABS,GL,NK, RS, DNV,BV,KR

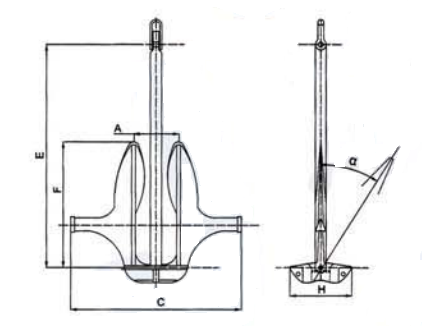

GB57 77 Matrosov HHP Anchor (2).png

Nominal Weight (Kg)	SIZE(mm)
Nominal Weight (Kg)	A	E	C	F	H	a
25	130	570	690	385	214	28~30
35	148	620	760	420	230	30~32
50	170	680	840	480	250	30~32
75	190	770	950	540	270	30~32
100	210	830	1060	590	290	30~32
125	226	870	1130	630	310	30~32
150	242	910	1190	670	330	30~32
200	270	980	1300	740	370	30~32
250	294	1040	1380	800	400	33~37
300	312	1090	1480	850	430	33~37
400	342	1190	1630	930	480	33~37
500	366	1280	1750	1000	520	33~37
650	400	1385	1910	1090	565	33~37
750	418	1450	2000	1140	590	33~37
1000	452	1570	2170	1240	630	33~37
1250	488	1660	2280	1300	660	33~37
1500	515	1715	2370	1350	675	33~37
