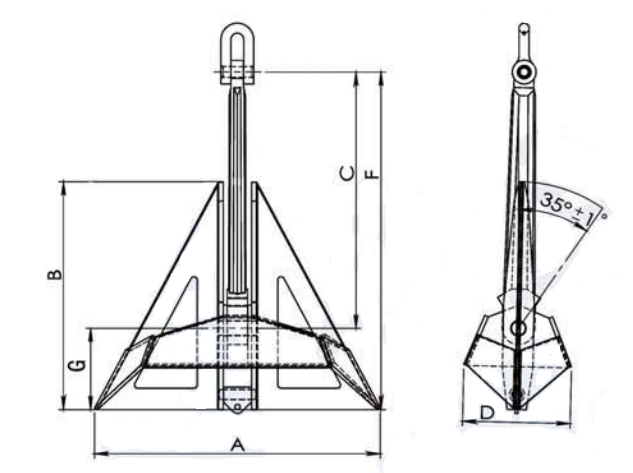

A well established high holding power delta anchor design approved and certified by all major classification authorities and available in weights from 300kg to in excess of 20,000kg. In built stabilisation within a wide fluke area, combined with adjustable fluke angles of between 28–50 degrees, enables deployment in a wide spectrum of seabed mediums and has allowed the anchor to become widely accepted within the offshore, dredging and marine civil engineering industries.
|
Nominal
Weight
(Kg) |
SIZE(mm)
|
Nominal
Weight
(Kg) |
SIZE(mm)
|
||||||||||
|
A
|
B
|
C
|
D
|
F
|
G
|
A
|
B
|
C
|
D
|
F
|
G
|
||
|
300
|
1310
|
1040
|
1180
|
495
|
1550
|
370
|
18000
|
5140
|
4100
|
4615
|
1940
|
6085
|
1470
|
|
500
|
1555
|
1240
|
1400
|
585
|
1845
|
445
|
20000
|
5320
|
4240
|
4775
|
2010
|
6300
|
1525
|
|
750
|
1780
|
1400
|
1600
|
665
|
2110
|
510
|
22500
|
5535
|
4420
|
4970
|
2090
|
6560
|
1590
|
|
1000
|
1960
|
1560
|
1755
|
740
|
2320
|
565
|
25000
|
5730
|
4575
|
5140
|
2160
|
6780
|
1640
|
|
1500
|
2250
|
1800
|
2025
|
840
|
2660
|
635
|
30000
|
6100
|
4880
|
5486
|
2305
|
7225
|
1739
|
|
2000
|
2470
|
2000
|
2250
|
930
|
2960
|
710
|
35000
|
6424
|
5138
|
5775
|
2426
|
7605
|
1830
|
|
2500
|
2660
|
2130
|
2395
|
1005
|
3150
|
755
|
40000
|
6715
|
5370
|
6036
|
2536
|
7948
|
1912
|
|
3000
|
2830
|
2285
|
2565
|
1070
|
3380
|
815
|
50000
|
7230
|
5785
|
6500
|
2730
|
8560
|
2060
|
|
4000
|
3180
|
2560
|
2880
|
1190
|
3790
|
910
|
60000
|
7690
|
6150
|
6910
|
2940
|
9100
|
2190
|
|
5000
|
3300
|
2660
|
2995
|
1260
|
3945
|
950
|
65000
|
7900
|
6315
|
7100
|
2980
|
9350
|
2250
|
|
6000
|
3560
|
2884
|
3245
|
1300
|
4269
|
1024
|
70000
|
8095
|
6475
|
7275
|
3060
|
9580
|
2305
|
|
7000
|
3750
|
2995
|
3365
|
1405
|
4440
|
1075
|
80000
|
8460
|
6770
|
7610
|
3195
|
10020
|
2410
|
|
9000
|
4120
|
3280
|
3690
|
1540
|
4860
|
1170
|
85000
|
8625
|
6900
|
7750
|
3255
|
10210
|
2460
|
|
10000
|
4270
|
3400
|
3825
|
1600
|
5040
|
1215
|
90000
|
8800
|
7040
|
7910
|
3325
|
10420
|
2510
|
|
13500
|
4670
|
3730
|
4195
|
1765
|
5535
|
1340
|
95000
|
8960
|
7170
|
8055
|
3386
|
10610
|
2555
|
|
15000
|
4840
|
3860
|
4340
|
1825
|
5725
|
1385
|
100000
|
9110
|
7285
|
8190
|
3440
|
10780
|
2590
|
