Marine anchor
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine anchor

CB711-98 Spek Anchor

CB711 - 98 Spek Anchor (1).jpg

Details:

1, Material : Carbon Steel, Steel

2, Weight : 100-26000kgs

3, Finish : black coating, galvanized

4, Certificate : CCS, LR, ABS,GL,NK, RS, DNV,BV,KR

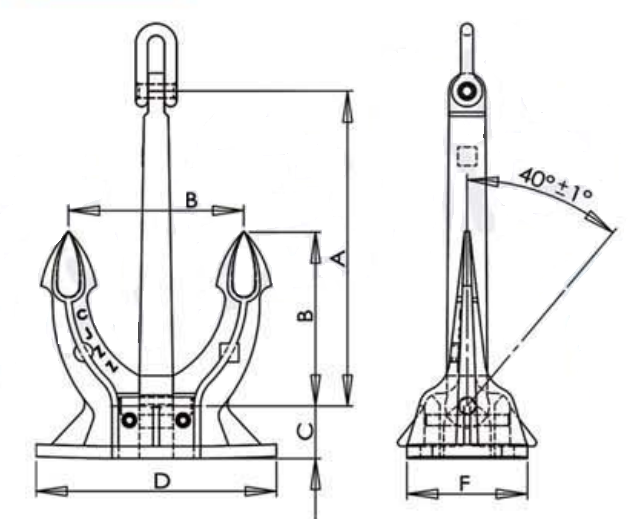

CB711 - 98 Spek Anchor (1).png

Nominal Weight (Kg)	SIZE(mm)					Nominal Weight (Kg)	SIZE(mm)
Nominal Weight (Kg)	A	B	C	D	F	Nominal Weight (Kg)	A	B	C	D	F
100	672	373	112	515	250	3300	2155	1200	360	1650	834
150	770	428	128	590	290	3780	2430	1350	393	1850	880
240	900	500	150	690	358	4320	2520	1400	413	1926	917
300	990	550	166	760	398	5250	2610	1450	414	2000	964
420	1080	600	180	828	431	6000	2700	1500	446	2060	1006
500	1170	650	196	900	450	7350	2790	1550	456	2138	1062
660	1260	700	210	960	486	8300	3060	1700	510	2332	1126
780	1355	750	225	1032	519	9300	3060	1700	510	2332	1169
900	1440	800	240	1100	547	10500	3190	1770	531	2440	1188
1140	1620	900	268	1240	591	12300	3440	1910	573	2632	1279
1440	1710	950	279	1300	640	14100	3440	1910	573	2632	1353
1740	1800	1000	300	1378	689	15400	3690	2050	615	2824	1387
2100	1890	1050	312	1454	717	17800	3950	2120	635	2922	1431
2460	2010	1100	324	1514	764	18800	3950	2190	657	3018	1461
2850	2070	1150	352	1584	804	20000	4070	2190	657	3018	1461
3060	2160	1200	360	1650	820	26000	4250	2360	716	3256	1618
