Marine anchor
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine anchor

U.S.N S Stockless Anchor

U.S.N S Stockless Anchor (4).jpg

Details:

1, Material : Steel

2, Weight : 300-30000kgs

3, Finish : black coating

4, Certificate : CCS, LR, ABS,GL,NK, RS, DNV,BV,KR

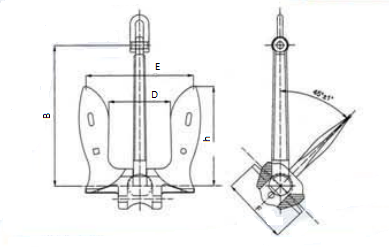

U.S.N S Stockless Anchor (1).png

Nominal Weight (Kg)	SIZE(mm)					Nominal Weight (Kg)	SIZE(mm)
Nominal Weight (Kg)	B	D	E	F	h	Nominal Weight (Kg)	B	D	E	F	h
300	727	319	562	348	510	5000	1884	816	1436	889	1323
400	800	351	619	364	570	6000	1974	867	1528	947	1403
500	863	379	666	412	614	7000	2082	913	1606	996	1480
600	914	402	708	438	652	8000	2171	955	1679	1040	1547
800	1008	443	778	783	710	9000	2257	993	1747	1082	1609
1000	1071	477	839	520	773	10000	2336	1028	1809	1120	1667
1200	1152	507	892	532	822	12000	2486	1093	1924	1193	1771
1500	1244	546	962	596	883	13000	2540	1122	1965	1194	1819
1800	1320	580	1021	632	941	15000	2679	1177	2089	1295	1908
2000	1371	601	1058	655	975	16000	2735	1203	2116	1311	1950
2200	1412	521	1092	676	1006	18000	2844	1251	2200	1365	2028
2500	1473	648	1139	706	1050	20000	2946	1296	2280	1412	2100
3000	1564	704	1270	775	1090	22500	3060	1345	2370	1463	2134
3500	1641	725	1275	790	1175	25000	3174	1396	2456	1521	2262
4000	1724	758	1333	826	1228	30000	3371	1483	2628	1631	2404

Previous：Beldt Stockless Anchor

Next：Japan Stock Anchor
