Marine anchor
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine anchor

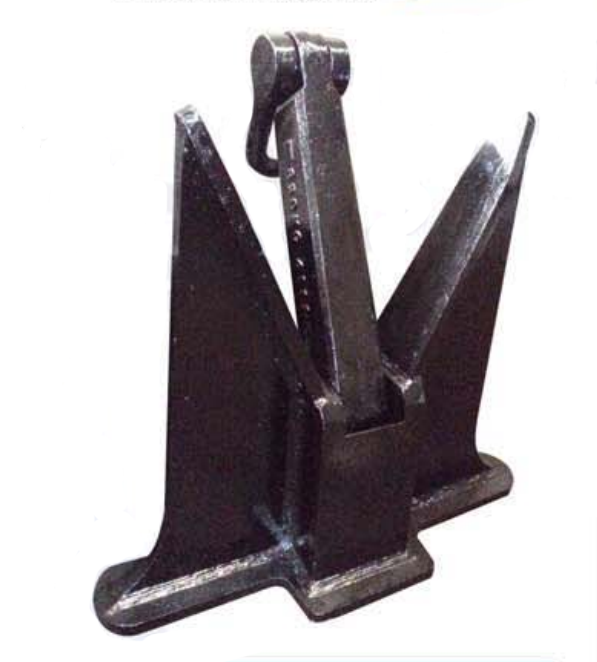

D-HONG Anchor

D HONG Anchor (2).png

1, Material : Iron, Q235

2, Weight : 200-15500kgs

3, Finish : hot galvanized, black coating

4, Certificate : CCS, LR, ABS,GL,NK, RS, DNV,BV,KR

5,Advantages: Suitable for taut leg mooring system，Load can be applied in any direction

.Uesd on production platforms.

D HONG Anchor (1).png

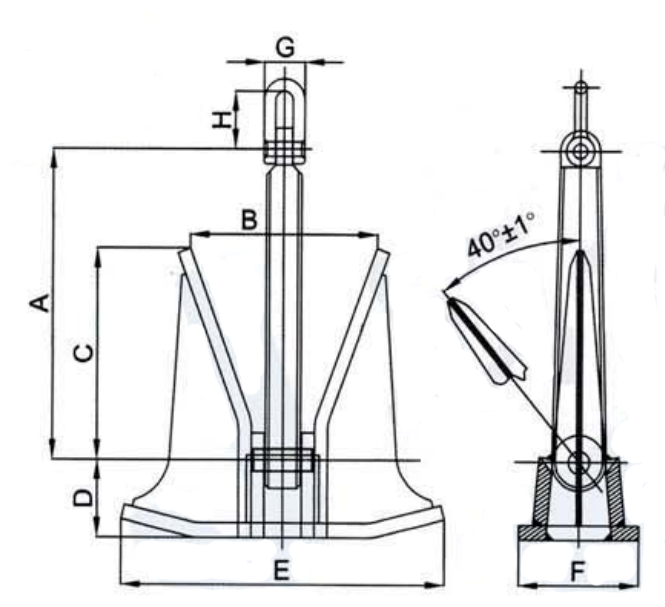

Nominal Weight (Kg)	SIZE(mm)								Nominal Weight (Kg)	SIZE(mm)
Nominal Weight (Kg)	A	B	C	D	E	F	G	H	Nominal Weight (Kg)	A	B	C	D	E	F	G	H
200	789	495	566	182	847	313	110	145	2800	1900	1190	1365	435	2040	755	279	380
300	900	566	648	207	968	358	136	175	3000	1950	1220	1400	445	2090	770	279	380
400	994	624	710	231	1065	395	151	192	3500	2050	1285	1470	470	2200	810	284	385
500	1070	670	765	250	1150	425	163	515	4000	2132	1340	1530	490	2280	850	305	410
600	1138	714	815	263	1220	452	163	215	4500	2224	1395	1590	510	2385	880	310	410
700	1200	750	860	275	1285	475	174	235	5000	2335	1460	1670	540	2505	927	343	450
800	1253	780	895	281	1340	495	174	235	6000	2484	1555	1780	575	2666	986	370	480
900	1300	810	927	297	1386	513	200	255	6500	2520	1580	1810	580	2710	1002	370	480
1000	1350	840	965	315	1450	536	200	255	7000	2580	1610	1840	595	2755	1020	370	480
1100	1394	875	1000	320	1490	555	215	280	8000	2686	1685	1930	615	2880	1065	391	540
1300	1475	925	1055	341	1580	585	215	280	9200	2830	1775	2030	650	3030	1120	418	580
1500	1545	970	1100	365	1660	610	215	280	9600	2877	1800	2060	660	3080	1140	418	580
1700	1608	1008	1150	373	1725	638	236	310	10000	2920	1830	2090	670	3126	1157	427	600
1800	1640	1030	1175	380	1760	650	236	310	10500	2964	1860	2125	685	3180	1180	437	600
2000	1700	1065	1220	390	1825	675	236	310	12000	3100	1940	2220	715	3320	1230	452	630
2200	1750	1100	1250	410	1880	695	256	340	13500	3200	2010	2290	740	3435	1270	468	640
2400	1800	1130	1290	420	1940	717	256	340	14000	3260	2045	2330	760	3495	1294	483	660
2600	1855	1160	1330	420	1990	737	279	380	15500	3360	2100	2410	770	3600	1330	498	680
