Details:
1, Material : Iron, Q235
2, Weight : 300-30000kgs
3, Finish : hot galvanized, black coating
4, Certificate : CCS, LR, ABS,GL,NK, RS, DNV,BV,KR
|

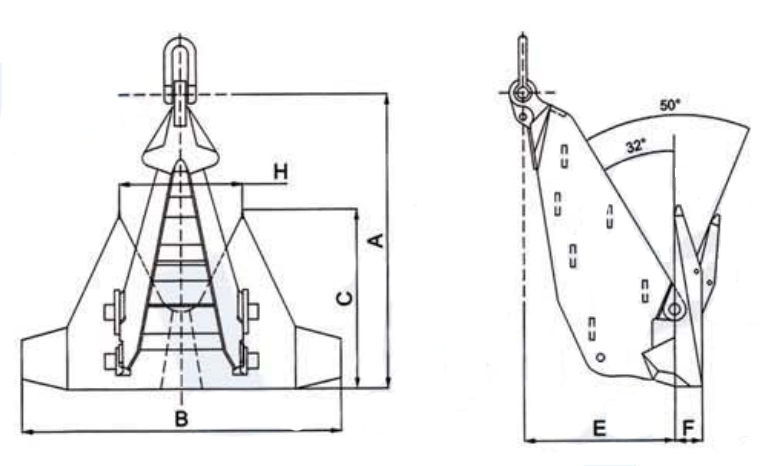

Nominal Weight(Kg)
|
SIZE(mm)
|
|||||||
|
A
|
B
|
C
|
D
|
E
|
K
|
L
|
S
|
|
|
1000
|
2429
|
2654
|
1559
|
2023
|
737
|
1010
|
412
|
60
|
|
1500
|
2774
|
3038
|
1785
|
2316
|
843
|
1156
|
471
|
65
|
|
3000
|
3493
|
3828
|
2249
|
2918
|
1063
|
1456
|
594
|
80
|
|
5000
|
4120
|
4538
|
2667
|
3460
|
1260
|
1727
|
704
|
80
|
|
7000
|
4602
|
5077
|
2983
|
3871
|
1409
|
1932
|
788
|
90
|
|
9000
|
5012
|
5521
|
3244
|
4209
|
1533
|
2100
|
857
|
100
|
|
12000
|
5516
|
6076
|
3570
|
4632
|
1687
|
2312
|
943
|
110
|
|
15000
|
5942
|
6545
|
3846
|
4990
|
1817
|
2490
|
1016
|
120
|
|
20000
|
6372
|
6986
|
4100
|
5324
|
2048
|
2674
|
1083
|
160
|
|
30000
|
7289
|
7997
|
4694
|
6094
|
2345
|
3061
|
1240
|
180
|
