| Model | PHXF-IZ | Explosion Group | BS 5501: IIA IIB IIC |
| Size |
DN50-350 GB81-59 PN0.6-2.5 FF,RF |
Temperature |
CS : -30℃ ~ + 350℃ SS : -80℃ ~ + 480℃ |
| Body Material | A3 304 304L 316 316L | Positive Disc Material | L2 A3 PTFE 304 304L 316 316L |
| Trim Material | 304 304L 316 316L | Negative Disc Material | L2 A3 PTFE 304 304L 316 316L |
| Bolt/Nut | 20# 304 304L 316 316L | Set Pressure | + 36mmH2O -- + 1000mmH2O |
| Diaphragm (P/V) | NBR PTFE Metal Gasket | Set Vacuum | - 20mmH2O -- - 50mmH2O |
| Jonit Type | Flange / Threaded | Manufacture Inspection | GB5908-86 SY7511-87 |
| Flanges | HG GB SH HGJ JB ANSI JIS | Coating | CS : Paint SS : natural color |

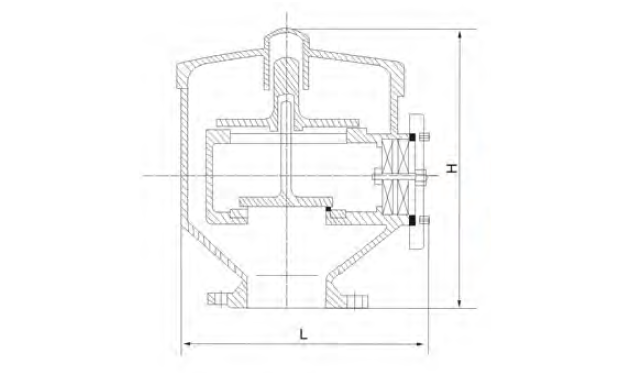

| DN | 50 | 80 | 100 | 150 | 200 | 250 | 300 |
| Inch | 2 | 3 | 4 | 6 | 8 | 10 | 12 |
| Length | 160 | 213 | 265 | 305 | 355 | 420 | 480 |
| Height | 255 | 260 | 290 | 330 | 350 | 400 | 510 |
