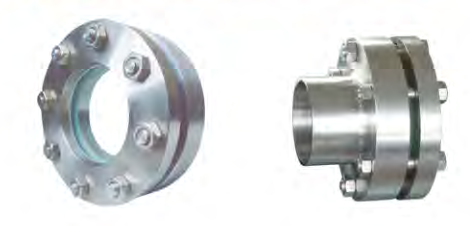

Model
|
PSJ-BL
|
Bolt/Nut
|
20# 304 304L 316 316L
|
|
Size
|
DN20-500
GB81-59 PN0.6-5.0 FF,RF
|
Ambient Temperature
|
0℃ ~250℃
0℃ ~ 800℃
|
|
Body Material
|
A3 304 304L 316 316L Glass Fiber
|
Jonit Type
|
Flange Threaded
|
|
Element Material
|
Borou Silicon Quartz
|
Flanges
|
HG20592-97 PN1.0Mpa
GB SH HGJ JB ANSI JIS |
|
Allow Mutate
|
<60°C
|
Manufacture inspection
|
HGJ501-502-86
|
|
Diaphragm(P/N)
|
NBR PTFE Metal Gasket Asbestos
|
||
|

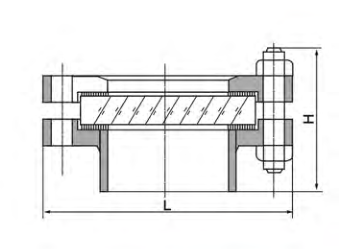

DN
|
L
|
H
|
|
50
|
115
|
73
|
|
80
|
145
|
82
|
|
100
|
185
|
88
|
|
125
|
205
|
88
|
