Model
|
PSZQ
|
Pore Size
|
SGB: 1~100 (um )
SGH : 0.01 ~0.02 (um)
|
|
Size
|
DN15~50 GB81~59
PN0.6-5.0 FF,RF
|
Temperature
|
≤ 140 ℃
|
|
Body Material
|
304 304L 316 316L
|
Bolt/Nut
|
304 304L 316 316L
|
|
Flanges
|
HG GB SH HGJ JB ANSI JIS
|
Manufacture Inspection
|
HGJ532-91 GB150-98
|
|
Joint Type
|
Flange Butt Welding
|
Coating
|
natural color
|
|
Element Material
|
SGB : SFPP SGH: SPF SPVDF
|
||
|
Diaphragm (P/V)
|
NBR PTFE Metal Gasket Asbesros
|
||

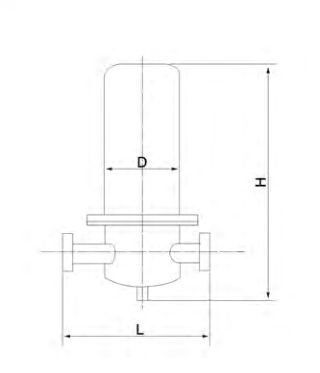

| DN | H | L | D |
| 20 | 224 | 140 | 65 |
| 20 | 390 | 160 | 90 |
| 25 | 430 | 240 | 185 |
| 32 | 435 | 310 | 219 |
