T-Type Fitter

0 (4).jpg

T-Type Fitter

Filter is a kind of small equipment that eliminates a small amout of rounds from liquid.It can protect normal operation for compressor,pump and other equipment as well as instruments and is also a small equipment to oncrease product pureness and pureness and purify gas.So it can be widely used in petroleum and chemical industry,chemical fiber,medicine,food etc.

     1. Applicable medium:
     1.1 Weak corrosively medium for petrochemical production such as water, ammonia, oil hydrocarbon products and etc.
     1.2 Corrosively medium for chemical production such as sodium hydrate, caustic acid, nitric acid etc.
     1.3 Low temperature medium for refrigeration, the refrigerant such as liquefied methane, liquefied ammonia, oxygen and etc.
     1.4 Industry hygiene medium in light industry food stuff and pharmacy such as beer drink beverage dairy products, syrup     medical articles for use etc.

0 (1).png

Model	Y-Type ( PST1; PST2 )	Pore Size	10 ~ 200 ( mesh / in )
Size	DN15-500 GB81-59 PN0.6-5.0 FF,RF	Temperature	CS : -30℃ ~ + 350℃ SS : -80℃ ~ + 480℃
Body Material	A3 H6z PP PTFE 304 304L 316 316L	Jonit Type	Flange / Threaded / Butt Welding
Element Material	304 304L 316 316L	Flanges	HG GB SH HGJ JB ANSI JIS
Bolt/Nut	20# 304 304L 316 316L	Manufacture Inspection	HGJ532-91 GB150-98
Diaphragm (P/V)	NBR PTFE Metal Gasket	Coating	CS : Paint SS : natural color

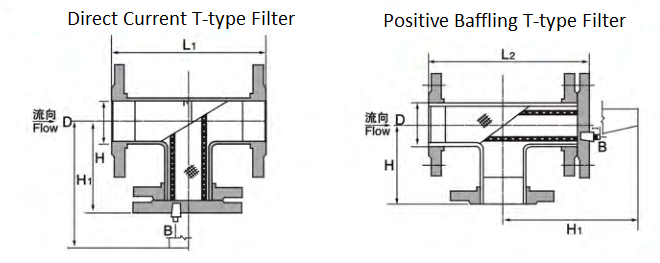

DN	Inch	L1	L2	H	H1	Effective Filtrate Area (㎡)
50	2	256	256	149	306	0.0039
65	2 1/2	292	292	170	348	0.0053
80	3	312	300	182	384	0.0079
100	4	362	360	210	473	0.0133
125	5	420	415	235	529	0.0204
150	6	460	440	260	581	0.0273
200	8	560	540	320	694	0.0462
250	10	670	600	380	821	0.0699
300	12	780	680	430	949	0.1001
350	14	830	750	450	1023	0.1205
400	16	910	850	530	1166	0.1585
500	20	1140	1140	650	1372	0.2438
