Suti Air Flame Arresting
Air Relief Flame Arrestor is also called mesh flame arrester, is one of the early flame arrester with characteri of simple structure, easy maintenance.
| Model | PZHQ-R | Explosion Group | BS 5501: IIA IIB IIC |
| Size |
DN15-300 GB81-59 PN0.6-2.5 FF,RF |
Temperature |
CS : -30℃ ~ + 350℃ SS : -80℃ ~ + 480℃ |
| Body Material | A3 304 304L 316 316L | Jonit Type | Flange / Threaded / Butt Welding |
| Trim Material | 304 304L 316 316L | Flanges | HG GB SH HGJ JB ANSI JIS |
| Bolt/Nut | 20# 304 304L 316 316L | Manufacture Inspection | GB5908-86 SY7511-87 |
| Diaphragm (P/V) | NBR PTFE Metal Gasket | Coating | CS : Paint SS : natural color |

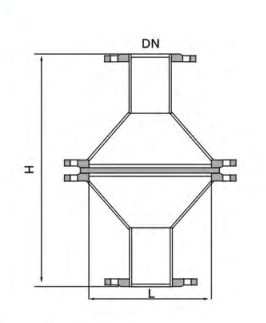

| DN | 50 | 80 | 100 | 150 | 200 | 250 |
| Inch | 2 | 3 | 4 | 6 | 8 | 10 |
| Length | 220 | 280 | 325 | 427 | 496 | 593 |
| Height | 236 | 270 | 274 | 288 | 306 | 320 |
