Pipe Auti Explosion Flame Arresting
Flame arrester is used to prevent flammable gas, liquid flame spread and prevent an explosion caused by tempering. It usually served on delivery or discharge inflammable and explosive gas storage tank and pipeline.
| Model | PZHQ-B | Explosion Group | BS 5501: IIA IIB IIC |
| Size |
DN15-600 GB81-59 PN0.6-2.5 FF,RF |
Temperature |
CS : -30℃ ~ + 350℃ SS : -80℃ ~ + 480℃ |
| Body Material | A3 304 304L 316 316L | Jonit Type | Flange / Threaded / Butt Welding |
| Trim Material | 304 304L 316 316L | Flanges | HG GB SH HGJ JB ANSI JIS |
| Bolt/Nut | 20# 304 304L 316 316L | Manufacture Inspection | GB5908-86 SY7511-87 |
| Diaphragm (P/V) | NBR PTFE Metal Gasket | Coating | CS : Paint SS : natural color |

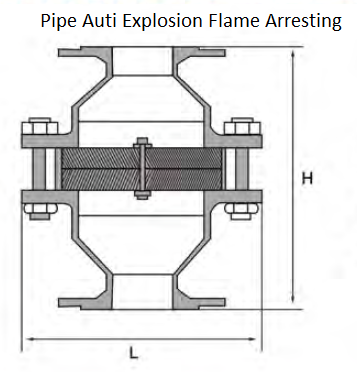

| DN | 20 | 25 | 40 | 50 | 80 | 100 | 150 | 200 | 250 |
| Inch | 3/4 | 1 | 1 1/2 | 2 | 3 | 4 | 6 | 8 | 10 |
| Length | 195 | 195 | 220 | 245 | 280 | 325 | 427 | 496 | 593 |
| Height | 200 | 200 | 240 | 240 | 250 | 260 | 360 | 420 | 430 |
