Petrochemical industy parts
Your current location:Home > PRODUCTS > Industry Equipment > Petrochemical industy parts

Y-Type Fitter

0 (5).jpg

Y-Type Fitter

Filter is a kind of small equipment that eliminates a small amout of rounds from liquid.It can protect normal operation for compressor,pump and other equipment as well as instruments and is also a small equipment to oncrease product pureness and pureness and purify gas.So it can be widely used in petroleum and chemical industry,chemical fiber,medicine,food etc.

     1. Applicable medium:
     1.1 Weak corrosively medium for petrochemical production such as water, ammonia, oil hydrocarbon products and etc.
     1.2 Corrosively medium for chemical production such as sodium hydrate, caustic acid, nitric acid etc.
     1.3 Low temperature medium for refrigeration, the refrigerant such as liquefied methane, liquefied ammonia, oxygen and etc.
     1.4 Industry hygiene medium in light industry food stuff and pharmacy such as beer drink beverage dairy products, syrup     medical articles for use etc.

0 (1).png

Model	Y-Type ( PSY )	Pore Size	10 ~ 200 ( mesh / in )
Size	DN15-600 GB81-59 PN0.6-5.0 FF,RF	Temperature	CS : ¬30℃ ~ + 350℃ SS : -80℃ ~ + 480℃
Body Material	A3 H6z PP PTFE 304 304L 316 316L	Jonit Type	Flange / Threaded / Butt Welding
Element Material	304 304L 316 316L	Flanges	HG GB SH HGJ JB ANSI JIS
Bolt/Nut	20# 304 304L 316 316L	Manufacture Inspection	HGJ532-91 GB150-98
Diaphragm (P/V)	NBR PTFE Metal Gasket	Coating	CS : Paint SS : natural color

Model	Y-Type ( PSSY )	Pore Size	10 ~ 200 ( mesh / in )
Size	DN32-500 GB81-59 PN0.6-5.0 FF,RF	Temperature	CS : -30℃ ~ + 350℃ SS : -80℃ ~ + 480℃
Body Material	A3 304 304L 316 316L	Jonit Type	Flange Butt Welding
Element Material	304 304L 316 316L	Flanges	HG GB SH HGJ JB ANSI JIS
Bolt/Nut	20# 304 304L 316 316L	Manufacture Inspection	HGJ532-91 GB150-98
Diaphragm (P/V)	NBR PTFE Metal Gasket	Coating	CS : Paint SS : natural color

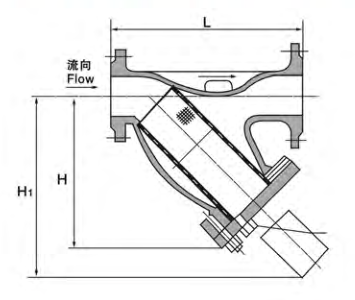

Y-Type Fitter (PSY)

DN	Inch	L	H	H1	Effective Filtrate Area (㎡)
15	1/2	125	70	150	0.00185
20	3/4	150	70	150	0.00281
25	1	160	80	160	0.00343
32	1 1/4	180	90	180	0.00486
40	1 1/2	195	100	240	0.00767
50	2	215	130	250	0.0116
65	2 1/2	250	165	350	0.02111
80	3	285	195	390	0.03029
100	4	300	230	450	0.04063
150	6	380	335	580	0.07709
200	8	480	420	690	0.11967
250	10	545	500	800	0.19155
300	12	605	580	950	0.26738
400	16	780	700	1360	0.40946
500	20	885	875	1650	0.65385
