Straight-way Basket Filter

Discription---- basket type filter
1 Material: stainless steel, carbon filter;
2 Feature: easy made, advanced structure , easy install and washing , big accept dirt , small resistance , easy drain contamination;
3 Effect: basket type filter is belong to pipeline rude filter series .Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end. Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use .
4 Working principle: After the liquid through the housing into the basket cartridge ,solid partricles will be blocked within the basket cartridge , and the clean fluid trough the basket cartridge outoff the filter.

Application
1 Weak corrosive materials in the chemical, petrochemical production ,eg: water , ammonia , oil , hydrocarbon;
2 Chemical production of corrosive materials .eg: caustic soda , soda ash , dense and dilute sulphuric acid , carbonic acid , acetic acid , ester acid;
3 Low temperature materials in the refrigeration. eg : liquid methane, liquid ammonia , liquid oxygen and all kinds of refrigerating fluid;
4 Light food , pharmaceutical production , health requirements of the material . eg : beer , drink , dairy products , medicine appliance.


Model	Basket-Type ( PSN1; PSN2 )	Pore Size	10 ~ 200 ( mesh / in )
Size	DN25-500 GB81-59 PN0.6-5.0 FF,RF	Temperature	CS : -30℃ ~ + 350℃ SS : -80℃ ~ + 480℃
Body Material	A3 H6z PP PTFE 304 304L 316 316L	Jonit Type	Flange / Threaded / Butt Welding
Element Material	304 304L 316 316L	Flanges	HG GB SH HGJ JB ANSI JIS
Bolt/Nut	20# 304 304L 316 316L	Manufacture Inspection	HGJ532-91 GB150-98
Diaphragm (P/V)	NBR PTFE Metal Gasket	Coating	CS : Paint SS : natural color

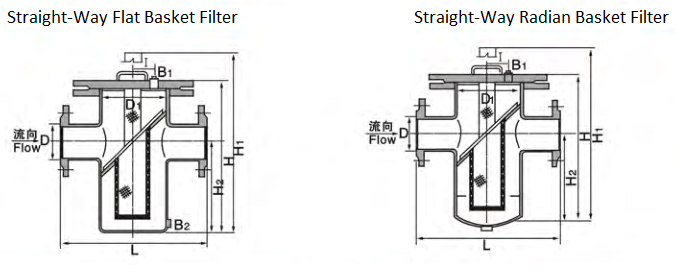

DN	Inch	D1	L	H	H1	H2	Effective Filtrate Area (㎡)
25	1	76	180	260	410	160	0.0162
40	1 1/2	108	260	300	560	170	0.0315
50	2	108	260	300	560	170	0.0315
65	2 1/2	140	330	360	637	240	0.0461
80	3	159	340	400	719	250	0.0590
100	4	219	400	470	881	300	0.1077
125	5	273	480	550	1079	360	0.1759
150	6	273	500	630	1276	420	0.291
200	8	325	560	780	1397	530	0.4076
250	10	420	660	930	1544	640	0.5017
300	12	450	750	1200	1739	840	0.6800
