Model
|
PSJR
|
Pore Size
|
10 ~ 200 ( mesh / in )
|
|
Size
|
DN25-500
GB81-59
PN0.6-5.0 FF,RF
|
Temperature
|
CS : -30℃ ~ + 350℃
SS : -80℃ ~ + 480℃
|
|
Body Material
|
A3 304 304L 316 316L
|
Jonit Type
|
Flange / Butt Welding
|
|
Element Material
|
304 304L 316 316L
|
Flanges
|
HG GB SH HGJ JB ANSI JIS
|
|
Bolt/Nut
|
20# 304 304L 316 316L
|
Manufacture Inspection
|
HGJ532-91 GB150-98
|
|
Diaphragm (P/V)
|
NBR PTFE Metal Gasket
|
Coating
|
CS : Paint SS : natural color
|
|

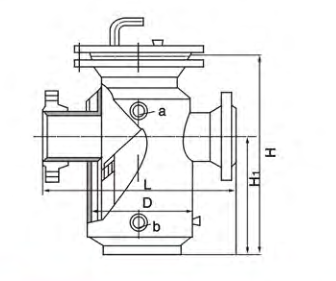

DN
|
L
|
H
|
H1
|
D
|
ab
|
|
25
|
285
|
300
|
150
|
133
|
20
|
|
32
|
330
|
320
|
170
|
159
|
20
|
|
40
|
390
|
350
|
190
|
180
|
20
|
|
50
|
440
|
380
|
210
|
219
|
20
|
|
65
|
450
|
420
|
230
|
219
|
20
|
|
80
|
480
|
450
|
280
|
250
|
20
|
|
100
|
540
|
650
|
340
|
325
|
20
|
