Model
|
PSCX
|
||
|
Size
|
DN25-500
GB81-59
PN0.6-5.0 FF,RF
|
Temperature
|
CS : -30℃ ~ + 350℃
SS : -80℃ ~ + 480℃
|
|
Body Material
|
304 304L 316 316L
|
Jonit Type
|
Flange / Butt Welding
|
|
Element Material
|
304L 316L
|
Flanges
|
HG GB SH HGJ JB ANSI JIS
|
|
Bolt/Nut
|
20# 304 304L 316 316L
|
Manufacture Inspection
|
HGJ532-91 GB150-98
|
|
Diaphragm (P/V)
|
NBR PTFE Metal Gasket
|
Coating
|
natural color
|
|

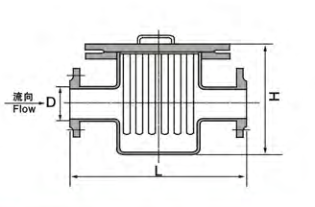

DN
|
L
|
H
|
h
|
|
40
|
300
|
440
|
170
|
|
50
|
300
|
440
|
170
|
|
80
|
400
|
590
|
180
|
|
100
|
500
|
630
|
280
|
|
150
|
700
|
870
|
280
|
